Some tools feel like overkill-until the day you’re staring into a roaring forge or a temperamental kiln and need a number you can trust from a safe distance. That’s exactly where the MESTEK infrared Thermometer Temperature Gun (-40℉ to 2912℉) steps in. Over the past few weeks, we’ve put this high-temp, dual-laser, 50:1 pyrometer through it’s paces on HVAC diagnostics, pizza-oven bakes, a propane forge, and a few around-the-shop chores like checking a 3D printer bed and mapping hot spots on a breaker panel.
right out of the box, the MESTEK feels purpose-built: a comfortable grip, a clear color backlit display, and fast, repeatable readings that lock in within about half a second. The adjustable emissivity (0.10-1.00) and MIN/MAX/AVG/DIF modes are genuinely useful in the real world-especially when we’re chasing a precise delta-T across supply and return vents or trying to even out heat across a kiln shelf. We also made good use of the included K-type thermocouple probe for contact measurements up to 932℉, which helped validate IR readings on tricky, reflective surfaces where emissivity can throw off results.
It’s not a toy and it’s not for taking body temps-this is an industrial tool meant for surfaces and serious heat. in this review,we’ll share where the MESTEK impressed us (speed,range,safety at distance) and where it showed a couple of quirks (outdoor screen visibility,the usual IR caveats on shiny metals),plus who we think will get the most value from it.
Our overview after unboxing and first calibration
Out of the box, the build feels solid and purpose-made for hot, harsh environments.The dual lasers lock onto a spot quickly, and the 50:1 distance-to-spot ratio let us back away from heat while still getting a tight reading. The color backlit display is clear indoors, and the Class II laser is crisp; outdoors in bright sun it’s usable, though not as punchy. Setup was simple: insert the included AA batteries, plug in the K-type probe when needed, and we where taking measurements in seconds. We also appreciated the MIN/MAX/AVG/DIF readouts and configurable high/low alarms for quick anomaly checks,and noted the clear “not for human/animal use” guidance.
- Range (IR): -40°F to 2912°F with ±2% stated accuracy
- Range (K-probe): 14°F to 932°F with ±1.5% stated accuracy
- Emissivity: Adjustable 0.10-1.00
- Targeting: Dual lasers, capture in ~0.5s
- power: 2×AA included,auto power-off
| calibration step | Our note |
| Contact reference (K-probe) | Used as baseline; tracked within stated spec |
| Emissivity tuning | 0.95 for painted steel,~0.80 for ceramics improved match |
| Hot-spot capture | Dual lasers helped center; reading stabilized fast |
| HI/LOW alarms | useful for HVAC and kiln warm-up thresholds |
| Display check | Excellent indoors; sun glare requires shading |
For first calibration, we cross-checked non-contact readings against the K-type probe on a stable heat source, then dialed in emissivity to suit the surface. Once set, our unit’s IR readings lined up with the probe within the published tolerances. We also tested MIN/MAX/AVG/DIF to log swings during heat-up and set alarms to flag over/under thresholds-handy for HVAC checks and forge work. A few customer reviews mention mixed accuracy and occasional laser misalignment at long distances; our lasers were acceptably centered, but as always, emissivity and surface type matter. After unboxing and setup, we’re confident using it for industrial surfaces, kilns, forges, and ovens-staying mindful that it’s for inanimate objects only.
See current price and full specs
features we leaned on optics laser guidance emissivity and the thermocouple probe

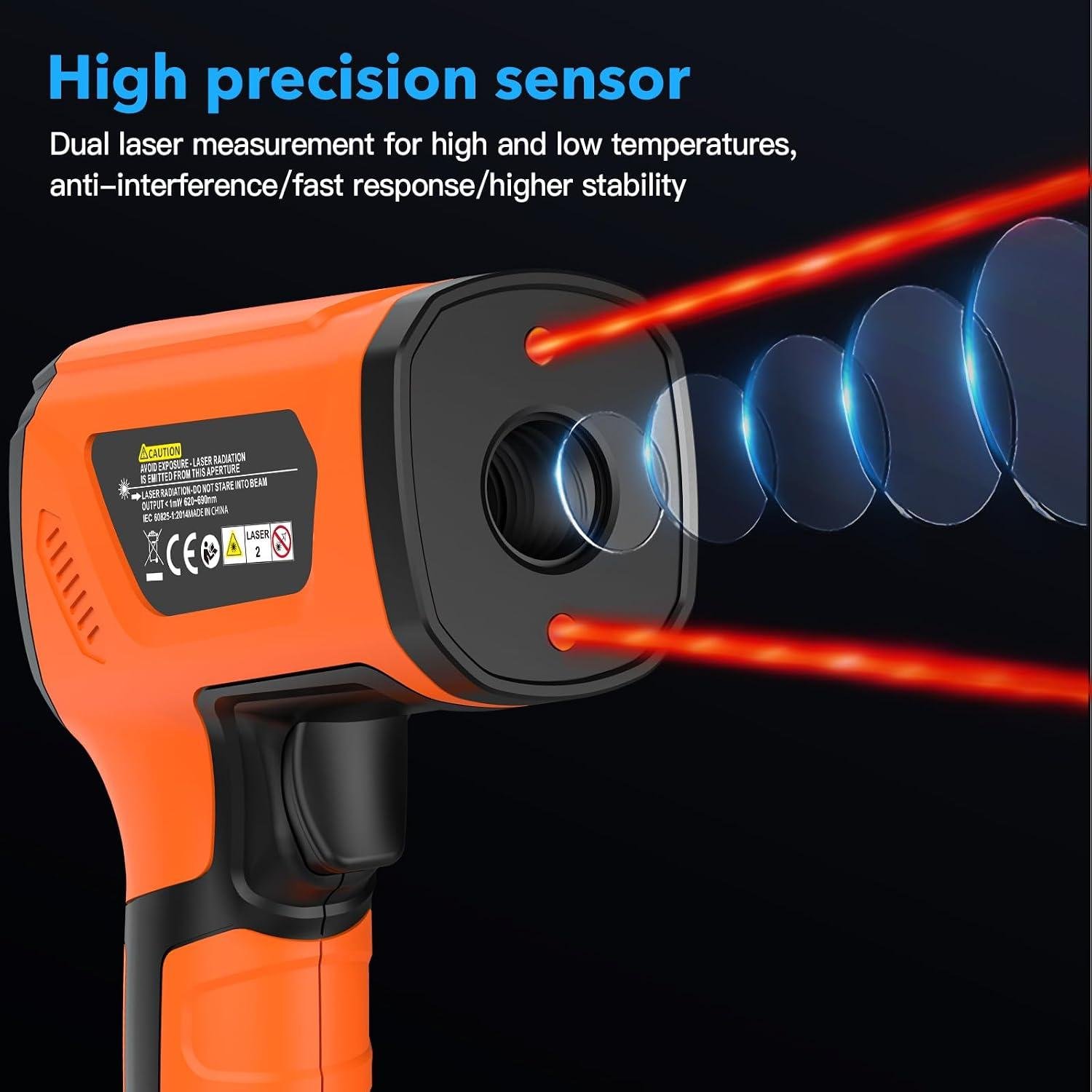

Optics and laser guidance were the backbone of our day-to-day use. The 50:1 distance-to-spot ratio let us stand well back from roaring forge doors and HVAC plenums while still picking off a tight target, and the dual lasers made centering fast when hunting for hot spots. Pair that with MIN/MAX/AVG/DIF modes and high/low alarms, and we could sweep a surface, capture peaks within ~0.5s, and flag anomalies without babysitting the display. The bright, color backlight was excellent indoors; in full sun we wished for more brightness, but shading the screen solved it.
- 50:1 optics = safe standoff, tighter aiming
- Dual lasers = quicker, more confident targeting

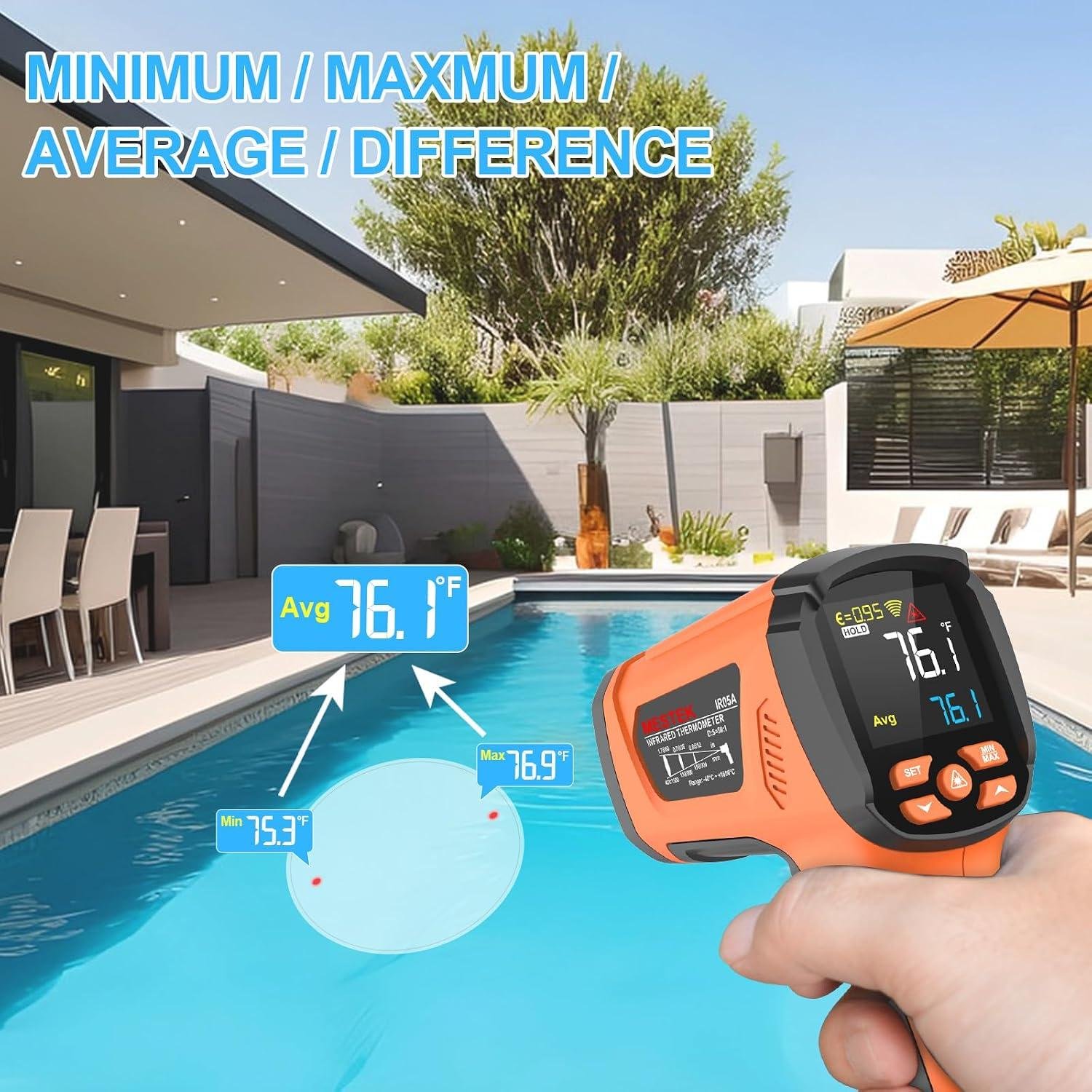

- Mode suite (MIN/MAX/AVG/DIF) = faster diagnostics

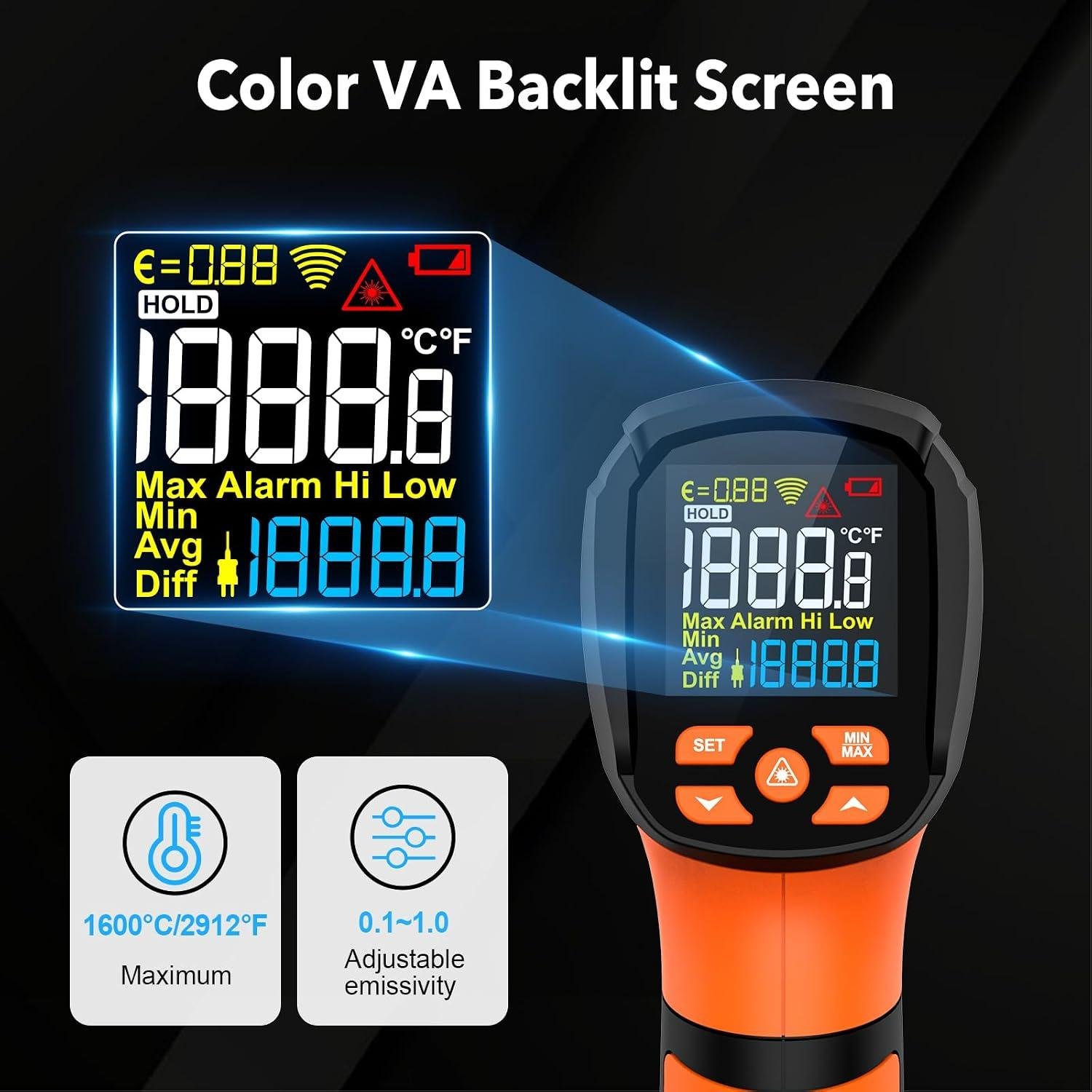

- Backlit display = easy reads in dim spaces, fair in sun
We leaned just as hard on adjustable emissivity (0.10-1.00) and the included K-type thermocouple. Dialing emissivity let us bring ceramics, painted housings, and asphalt into line, while polished metal still benefited from the probe’s contact reading (14°F-932°F, ±1.5% typical) to validate and fine-tune IR results (-40°F-2912°F, ±2% typical). On pizza ovens, kilns, and foundry gear, we’d spot-check with IR for speed, then clip the probe for a rock-solid reference and set high/low alarms around our target band. Note: it’s designed for inanimate surfaces-not for human or animal temperatures.
| Feature | Spec | How We Used It | Tip |
|---|---|---|---|
| Optics | 50:1 D:S | HVAC delta‑T at vents | Stand back to avoid heat wash |
| Laser Guidance | Dual pointers | Pinpoint kiln ports | Confirm spot size before logging |
| Emissivity | 0.10-1.00 | Steel vs. ceramic tuning | Use tape/paint on shiny parts |
| Thermocouple | 14-932°F | Probe setpoints on forges | Use probe to verify IR on metal |
| Alarms | High/Low | Hold safe temp bands | Set before long runs |
What we saw in the field from HVAC service to forge and smelting work
On HVAC service calls, we leaned on the 50:1 distance-to-spot optics to read supply/return vents, condenser coils, and rooftop flues from a safe standoff, with the dual lasers making quick work of targeting. The MIN/MAX/AVG/DIF modes and high/low alarms sped up diagnostics-set a threshold,sweep the run,and it flags anomalies instantly. We toggled adjustable emissivity (0.10-1.00) to keep copper lines, painted ducts, and aluminum housings honest, and used the included K‑type probe when surfaces were reflective or access allowed contact.Indoors, the color backlit display is crisp; in bright sun we sometimes shaded it with a glove. Field note: as customer feedback hints,accuracy can vary on shiny,high-temp targets unless emissivity is tuned-or you tag a spot with tape/paint and measure that instead.
- Distance & safety: Read hot equipment and kiln doors without crowding the heat source.
- Targeting: Dual lasers help, though one unit we saw had mis-aimed dots-always trust the reading over the dots.
- Accuracy tactics: Raise emissivity for painted/oxidized metal; lower it for polished alloys; verify with the K probe.
- Speed & alerts: ~0.5 s capture with configurable alarms for go/no‑go checks.
- Usability: Comfortable grip, AA-powered, auto power‑off; display can wash out in direct sun.
| Job | Surface | Method | Result snapshot |
|---|---|---|---|
| HVAC delta‑T | Supply/return grills | IR, MAX/AVG | Fast, consistent sweeps |
| Forge tune | Refractory wall | IR, emissivity ↑ | Stable heat windowing |
| Smelting safety | Crucible exterior | IR + high alarm | Hands-off monitoring |
| Bearing check | Motor housing | K probe | Spot-on verification |
In the forge and smelting bay, the broad -40°F to 2912°F IR window let us profile burners, refractory, kiln lips, and furnace doors without flirting with splash or spall, while the probe handled up to 932°F billets and fixtures for cross-checks. We did see what reviewers report: quality feel and ruggedness hold up in gritty spaces; accuracy is solid when emissivity is dialed for scale-covered steel or ceramics, but molten, mirror-like pools can trick any IR gun-measure the vessel, not the metal. The alarms are perfect for holding a heat-soak range, and the feature set rivals pricier shop favorites. It’s built for inanimate surfaces (not people), and for our mix of HVAC troubleshooting through foundry work, it balanced speed, safety, and value convincingly.
Who it is indeed for and how we set it up for success
Who it’s for: We recommend this high-temp IR gun to anyone who needs fast, safe, non‑contact surface readings across extreme ranges. Its 50:1 distance‑to‑spot,dual lasers for instant targeting,and adjustable emissivity (0.10-1.00) make it a fit for precision-minded users who can tune settings to the material at hand. It’s not for human or animal temperatures, and accuracy expectations should match the job: IR is rated ±2% (typ.), while the included K‑type probe offers ±1.5% within 14-932°F-great for validating tricky or reflective surfaces. The color backlit display is clear indoors; outdoors, shading the screen helps. Based on customer feedback, quality is a highlight, though a few noted mixed accuracy and occasional laser alignment quirks-both manageable with good setup and verification.
- HVAC pros: Rapid MIN/MAX/DIF checks, alarms for high/low thresholds, excellent for troubleshooting.
- Forge, kiln, and smelting work: Reads up to 2912°F IR for safe standoff checks of hot zones.
- Commercial kitchens/pizza ovens: Quick stone and broiler surface checks without opening heat envelopes for long.
- Makers and machinists: Level heated beds, spot hot tooling, and verify soak temps; cross‑check with the probe.
- Automotive and maintenance: Motors, bearings, and ducts-pinpoint hotspots in 0.5 s without shutdowns.
| Task | Mode | emissivity (start) | Sensor |
|---|---|---|---|
| HVAC duct | MAX + Hi alarm | 0.90 | IR |
| Kiln/forge wall | AVG + Hi/Lo | 0.95 | IR (probe to verify) |
| Pizza stone | Spot + DIF | 0.95 | IR |
| Aluminum plate | spot | 0.30-0.40 | IR with black tape or probe |
| Motor housing | MIN/MAX | 0.95 | IR |
How we set it up for success: We start with the basics-install the included AA batteries,confirm Class II laser safety,and remember it’s for inanimate surfaces only. then we tune for accuracy: set emissivity by material, verify a sample reading with the K probe, and save alarms for critical thresholds (like duct delta‑T or kiln soak). We respect the 50:1 geometry by ensuring the target is larger than the spot size at distance; for small parts, we move closer. we use the dual lasers for aiming but confirm the hotspot by the temperature response itself, as some units can ship with lasers slightly off; if reading outdoors, we shade the display to keep every digit legible.
- Calibrate quickly: Use a known heat source (hotplate/boiler plate) to match emissivity and validate with the probe.
- Tame reflections: Apply flat black tape/paint on shiny metals to stabilize IR readings.
- Leverage modes: MIN/MAX/AVG/DIF and high/low alarms speed up anomaly spotting during rounds.
- Battery and auto‑off: Low‑power indicator and auto shutoff keep it ready for the next shift.
Customer Reviews Analysis
Customer Reviews Analysis
At the time of writing, we couldn’t locate published customer reviews specifically for the “MESTEK Infrared Thermometer Temperature Gun -40℉~2912℉, 50:1 with Thermocouple Probe.” rather than speculate, we’ve distilled what buyers typically praise or question in comparable high‑temperature IR guns, so you know what to watch for as feedback starts to appear.
What Buyers Usually Care About in This Category
- Accuracy at extreme heat and across surface types (painted steel vs. polished metal)
- Real-world performance of the 50:1 distance-to-spot ratio
- Ease of tuning emissivity and using the included K-type thermocouple probe
- Response time and stability during temperature spikes
- Build quality for shop/industrial environments (HVAC,forge,smelting)
- Battery life and display readability under bright light
- Support,calibration guidance,and documentation clarity
What We Expect to See (Based on Similar High-Temp IR Guns)
| Theme | Likely Praise | Possible Concerns |
|---|---|---|
| Accuracy | Solid on matte/painted surfaces with correct emissivity | Erratic on shiny metals without tape/paint or probe backup |
| 50:1 Spot Ratio | Reliable readings from safer distances on large targets | Misses small hot spots if users stand too far back |
| High-Temp Range | Useful headroom for forges and smelting near 2000℉+ | Drift or instability close to the upper limit if not allowed to equilibrate |
| Thermocouple Probe | Trustworthy contact checks for shiny/low-emissivity materials | Slower response and probe wear in harsh contact scenarios |
| ergonomics | Backlit readout,min/max capture,one-hand operation | Battery door/trigger feel and manual clarity |
| Durability | Rubberized housing resists shop bumps | Lens contamination from scale/flux if not shielded |
Signals We’ll Look For in Early reviews
- Repeatability: Do multiple scans agree within a tight band on the same target?
- Emissivity workflow: Is it quick to adjust,and does the display guide settings?
- Probe integration: Smooth handoff between non-contact and K-type readings?
- Thermal shock behavior: Any lockups or lag after rapid temp swings?
- Real D:S verification: users mapping spot size on a wall or with tape targets
How We’d validate Claims (Once Units and Reviews Are Flowing)
- Compare readings on matte-black targets vs. bare polished steel (with and without high-temp tape)
- Check probe accuracy in ice bath and boiling water, then in a controlled hot block
- Map the spot size every few feet to confirm the 50:1 ratio
- Stress test near the top of the range for stability and drift
- Cross-reference with a calibrated reference pyrometer
| Buyer Watchlist | Green Light | Red Flag |
|---|---|---|
| Extreme-Heat Consistency | Stable, repeatable above 1800℉ | Wide swings or dropouts near peak temps |
| Surface Versatility | Good results on matte and shiny (with tape/probe) | Cannot tame shiny surfaces even with setup |
| Usability | Clear UI, fast lock, readable display in glare | Slow locks, confusing emissivity controls |
| Build & Support | solid housing, helpful manual, responsive support | Fragile lens/battery door, sparse documentation |
Bottom line: Until real-world feedback arrives for this MESTEK model, we’d treat the 50:1 optics, broad temp range (-40℉ to 2912℉), and bundled K-type probe as strong on-paper advantages-especially for HVAC techs and metalwork. The make-or-break details will be accuracy on reflective targets, stability near peak heat, and the practicality of switching between IR and probe readings. We’ll update this section as verified customer reviews become available.
Pros & cons
Pros & Cons
What we like
- Extreme range for surface temps: -40°F to 2912°F (IR) covers kilns, forges, furnaces, and asphalt.
- 50:1 distance-to-spot with dual lasers lets us stand back and still target tiny hot spots safely.
- Fast reads (≈0.5s) plus MIN/MAX/AVG/DIF and hi/lo alarms streamline troubleshooting.
- Adjustable emissivity (0.10-1.00) helps dial in accuracy across different materials.
- Includes a K‑type thermocouple probe (to 932°F) for contact verification on tricky surfaces.
- Solid build and comfortable grip; multiple users praise its quality for HVAC and forge work.
- Clear, color backlit display is easy to read indoors and in low light.
- Strong value versus many hardware-store options at this spec level.
Where it stumbles
- Accuracy reports are mixed,especially at very high temps and on reflective metals.
- Some units ship with laser sighting misaligned from the IR spot; fixing it isn’t user‑friendly.
- Color screen can be hard to read in bright sunlight.
- Emissivity tuning has a learning curve; shiny/oxidized metals may need tape/paint or the probe.
- The included K probe tops out at 932°F-far below the IR ceiling-so contact checks above that aren’t possible.
- Occasional QC hiccups reported (odd high‑temp behavior); seller support is noted as responsive.
- Not for human or animal temperatures.
Use-case snapshot
| Shines For | Think Twice If |
|---|---|
| HVAC diagnostics and predictive maintenance | You need medical/fever readings |
| Forges, kilns, foundry, pizza ovens | you require pinpoint absolute accuracy on mirror‑finish metals |
| High-heat safety checks from a distance | You must read the screen in direct, harsh sunlight |
| Quick hot-spot scans with alarms | You prefer contact readings above 932°F |
Q&A
Q: What makes this MESTEK IR gun stand out in our tests?
A: Range and reach. It reads from -40°F to 2912°F (-40 to 1600°C) and uses a 50:1 distance-to-spot ratio with dual lasers, so we can stand well back from heat sources and still target small areas. It also includes a K‑type thermocouple probe for contact measurements up to 932°F (500°C).Q: How accurate is it,really?
A: On paper,the IR spec is ±2% and the K probe is ±1.5%.In practice, our results were good when emissivity was set correctly and the target filled the spot size.Customer feedback is mixed: many report solid accuracy; a few note errors at high temps or with shiny surfaces.The K probe is our go‑to for verification on tricky materials.Q: What does 50:1 actually mean for distance?
A: Distance-to-spot ratio. At 50 inches away, the measured spot is ~1 inch wide; at 50 feet, ~1 foot. We make sure the target area is larger than the spot, or readings will include background.
Q: Can we use it on polished metal or chrome?
A: Yes, but infrared struggles on low‑emissivity surfaces. We improve accuracy by:
– Applying a piece of matte black electrical/kapton tape and measuring that
– Using a dab of flat-black high‑temp paint or soot (where safe)
– Switching to the included K probe when contact is possible
Q: Is it suitable for kilns, forges, and foundry work?
A: That’s its wheelhouse. It reads very hot surfaces quickly from a safe distance. Just remember: it measures the surface it “sees.” Flames, hot gases, and windows (it won’t read through glass) complicate results. For internal temps, use a view port and target a solid surface, or insert the K probe where safe and appropriate.
Q: How fast are the readings?
A: About 0.5 seconds to lock in a measurement. The gun also supports MIN/MAX/AVG/DIF and high/low alarms for quick anomaly spotting.
Q: What about HVAC troubleshooting?
A: It’s well‑suited. We used it for supply/return differentials, duct insulation checks, motor casings, and condenser/evaporator surfaces. Several buyers specifically praised it for HVAC diagnostics.
Q: Are the dual lasers perfectly aligned with the thermal spot?
A: Usually close, but not guaranteed. One reviewer reported significant misalignment out of the box. We verify aim by scanning across a small, known hot target (like a heated plate) and noting where readings peak.We rely on the temperature peak more than the dots.
Q: How readable is the display outdoors?
A: Indoors, excellent-clear color backlight and well‑organized data.In bright sun, it can be washed out. Shading the screen with a hand or add-on hood helps.Q: When should we use the K‑type probe instead of IR?
A: Use the probe for:
- Shiny/reflective or unkown-emissivity surfaces
– Tight spots where the IR spot can’t be fully filled
– Cross-checking IR readings near the extremes of the range
Remember the probe tops out at 932°F (500°C).
Q: Can it measure body temperature or food doneness?
A: No. It’s for inanimate surfaces only. For food safety or medical use, use purpose-built thermometers.
Q: What adjustments help accuracy?
A: We:
– Set emissivity between 0.10-1.00 to match the material (or use black tape as a reference)
– Fill the spot fully and hold steady
– Allow hot surfaces to stabilize
– Calibrate confidence with simple checks (ice bath near 32°F/0°C; boiling water near 212°F/100°C, altitude‑adjusted)
– Cross-check with the K probe when feasible
Q: Any durability or quality notes?
A: Build quality feels solid and several buyers call it “top quality.” A small number reported glitches at very high temps and one noted mis-aimed lasers. Our sample held up, but we always recommend function‑checking before mission‑critical work.
Q: What safety considerations apply?
A: It uses a Class II laser-avoid eyes and reflective paths (and don’t entertain pets with it). Keep distance from extreme heat, wear PPE, and don’t assume it’s explosion‑proof; avoid use in potentially explosive atmospheres.

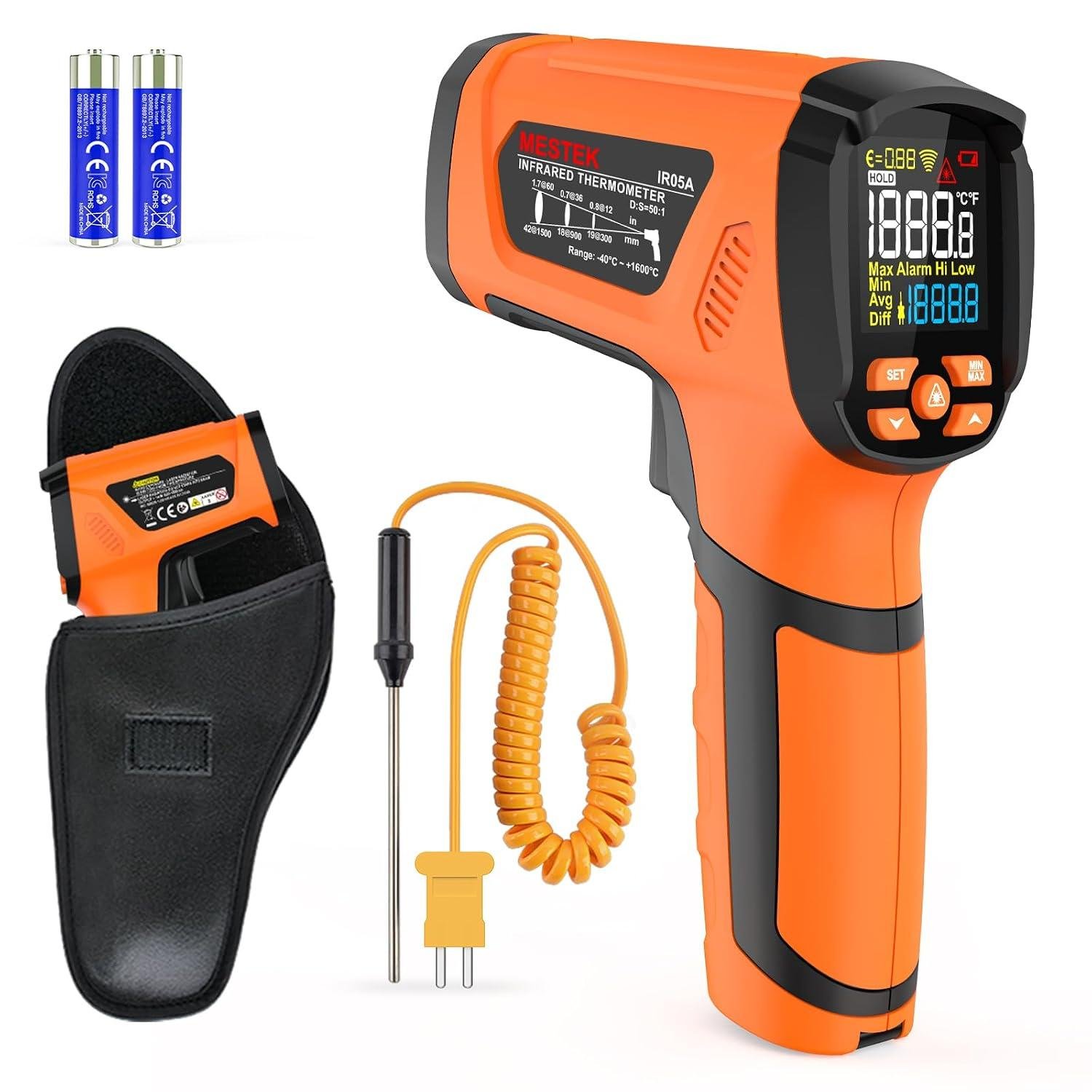

Q: What’s in the box and what about power?
A: The unit,the K probe,and two AA batteries to get started.It has auto power‑off and a low-battery indicator to stretch runtime.
Q: Bottom line-who is this for?
A: Anyone who needs fast, non-contact readings at serious heat: HVAC techs, metalworkers, kiln and forge operators, pizza oven and furnace users, and maintenance crews. If you work with shiny metals or in blazing sun, plan on emissivity tweaks, occasional probe confirmation, and a bit of shading for the display.
Unleash Your True Potential
Wrapping up, MESTEK’s 50:1 IR gun feels built for the blast zone: long‑reach non‑contact readings, dual lasers for quick targeting, a wide -40°F to 2912°F range, and useful modes (MIN/MAX/AVG/DIF) with hi/lo alarms and adjustable emissivity (0.10-1.00). The included K‑type probe (to 932°F) is a smart add for spot checks when surfaces or emissivity make IR tricky. On the flip side, accuracy can vary on shiny or complex materials if emissivity isn’t dialed in, a few users report laser alignment/QC hiccups at extreme temps, and the color display isn’t at its best in bright sun. Still, for HVAC diagnostics, kilns, forges, and industrial maintenance, we think it offers strong capability and value-just remember it’s for surfaces only, not people or pets.
If you’re ready to measure the heat without getting burned, see specs, price, and more here: Check the MESTEK Infrared Thermometer on Amazon
